How to Design and Build A Forest Garden - Part 1. Surveying
Forest Gardens are an excellent way to produce food and other resources for humans while enhancing biodiversity by providing a range of habitat for wildlife within the design. They are very enjoyable to design, build and interact with. Creating a forest garden is an intellectual pursuit as well as a physical one. It’s like a living, 3D amorphous puzzle that you can eat : )

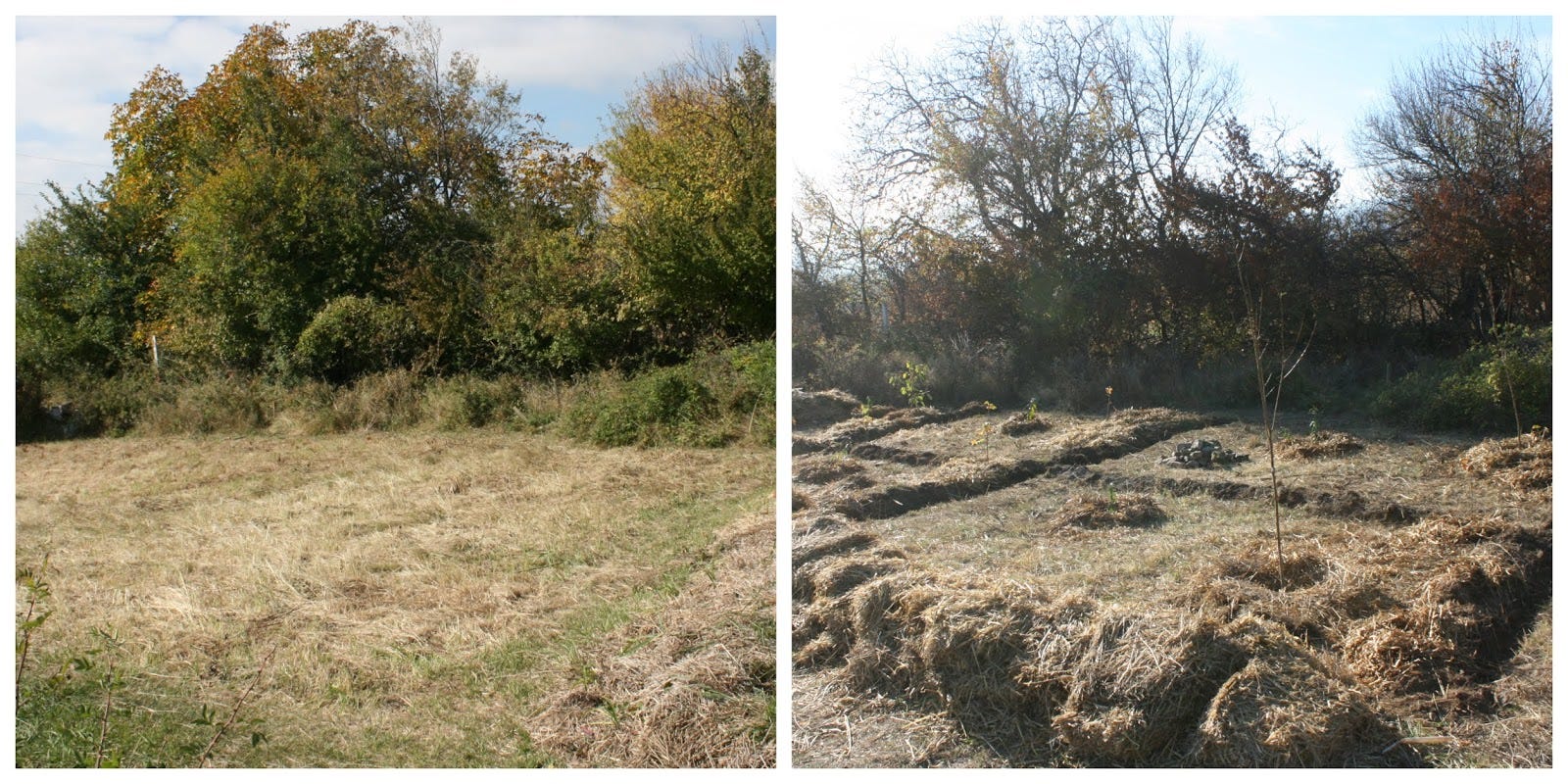

Autumn of 2018 we tried out a new course format, the "Design 'n Build", an intensive practical course where we go through the whole design process of a forest garden and complete the build of a project within 3 days. We had a great group join us for the course and managed to complete the design and build of a 100 m2 forest garden consisting of around 120 plants representing 22 species (not including the local plants).

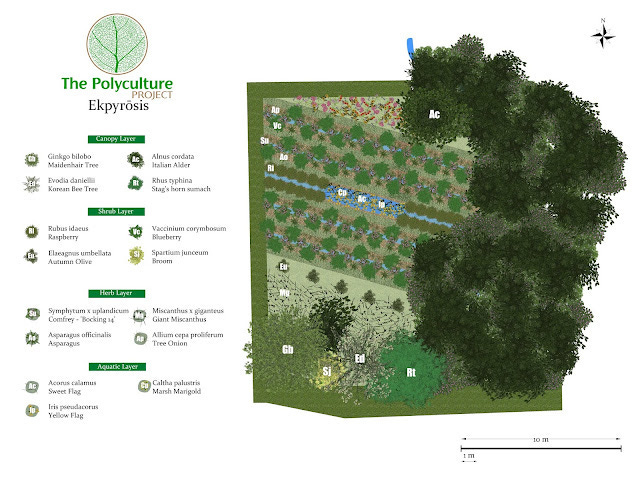

During this post we'll cover how we designed and built this forest garden, starting with the design for the garden illustrating the garden when initially planted and when mature and a look at the specifications of the site.
The Site Specs  Â
​Climate: Temperate
Köppen Climate Classification - Dfc borderline Cfb
USDA Hardiness Zone:Â 5b - 7a
Latitude: 42°
Elevation:Â 574 m
Average Annual Rainfall:Â 588.5 mm
A great starting point for any land-based design is surveying the plot and surrounding area. On the first day of the course following a brief introduction we got straight to work with the climate surveys. This work can largely be achieved with a PC and the internet.Â

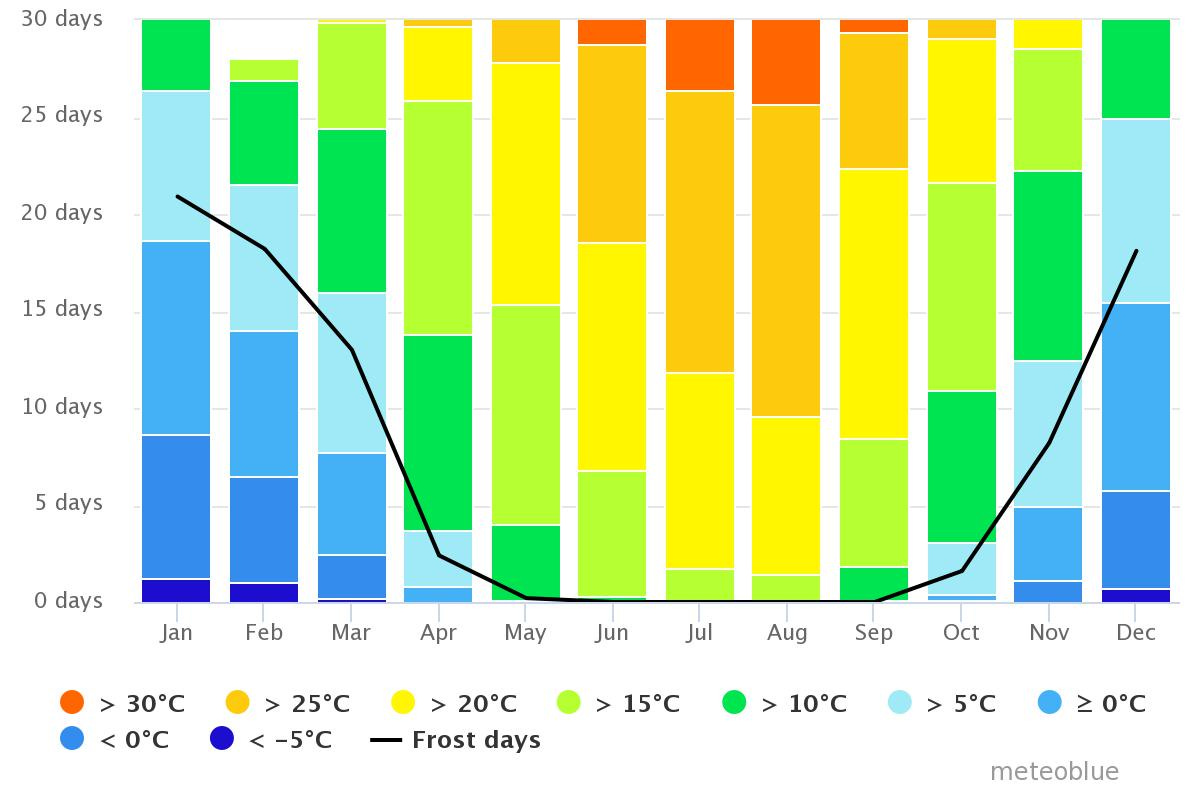

Climate Survey
We start with the climate survey that helps to define the boundaries of our options. The kind of information we are looking for here is as follows:

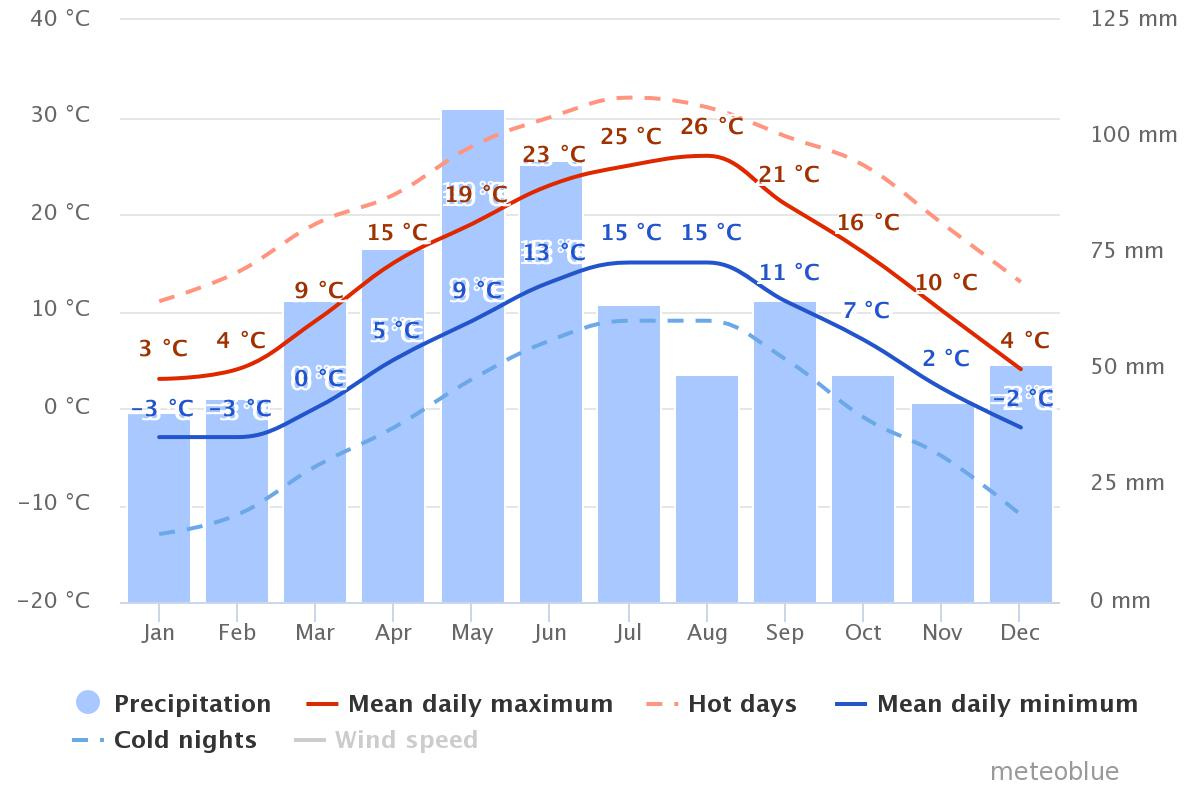

Mean temperatures and the average amount of rain your site receives each year and in what months that rain is received. It's very useful to have the extreme records for this info too, i.e, what is the most amount of rainfall recorded in any one event in any one month and what were the hottest and coldest days recorded.  Â
How much light your site receives throughout the year and how that light is distributed on the ground (which objects create shade)

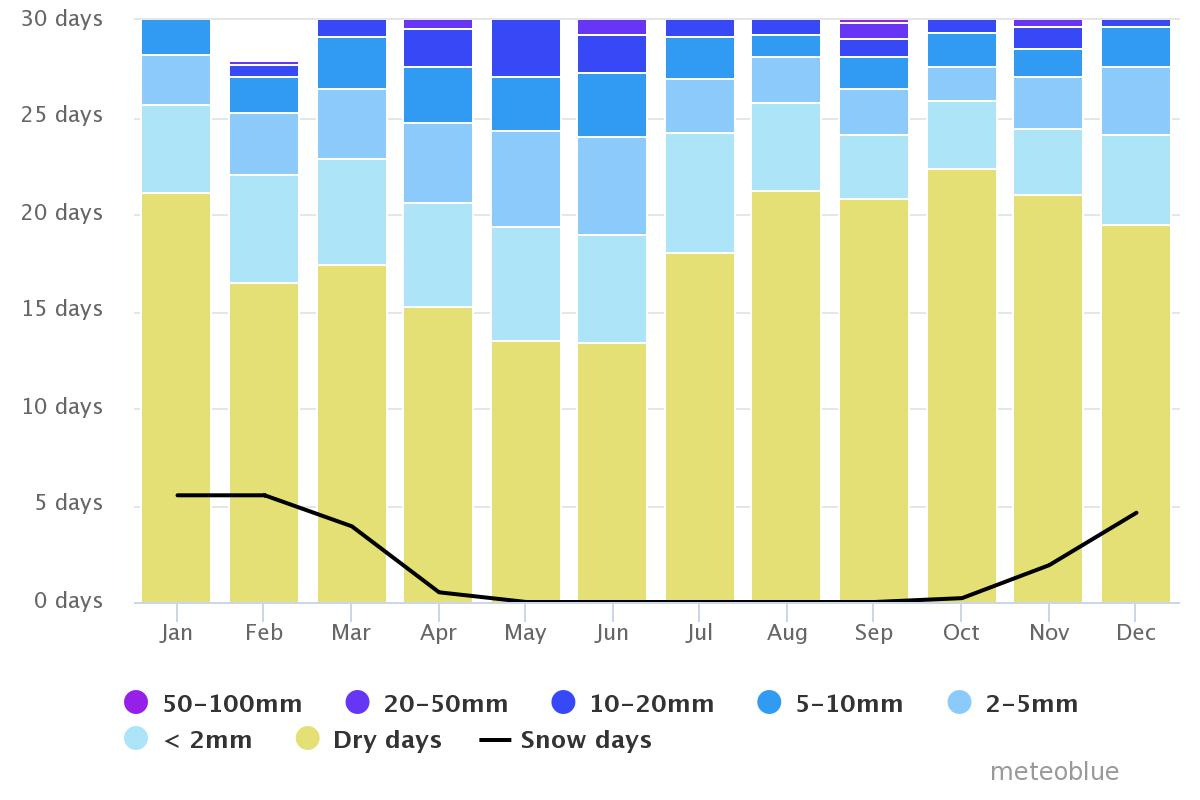

If relevant, how many days of snow cover will you receive Â
Temperature patterns of your site. The lowest and highest recorded temperatures are very important to know, as are the dates of your first and last frosts
The wind patterns of your site, from which direction does the wind blow and how intense is that wind? Â

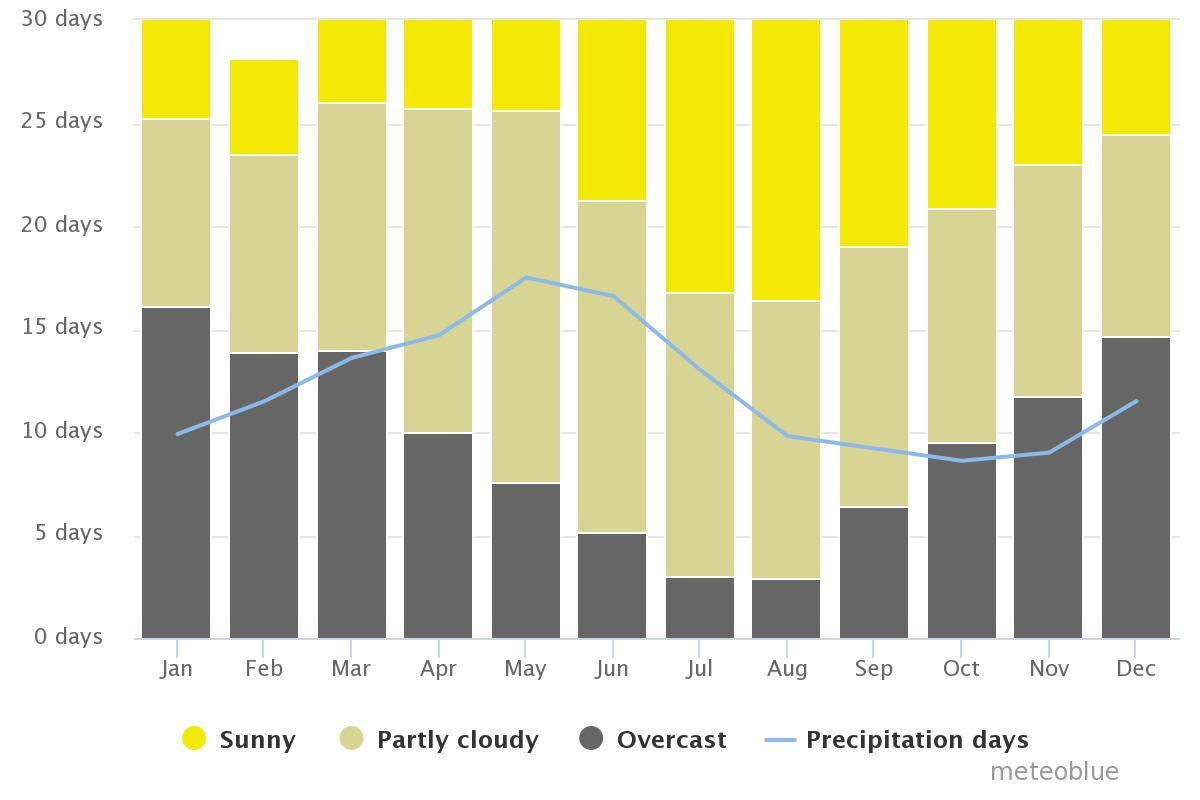

You can find the above information with the charts at www.meteoblue.com
Botanical Survey
We then moved onto the site to take a look at the botany, taking note of the vegetation, specifically the layers that are already growing on the site. Obviously we did not have time to record all of the plants (best achieved by surveying in each season) but we have been making these records for the last few years. We looked at a few indicator species and methods to categorize and record plants.Â
Making a botanical survey is a great way to really get to know your site and of course, the resident plants.

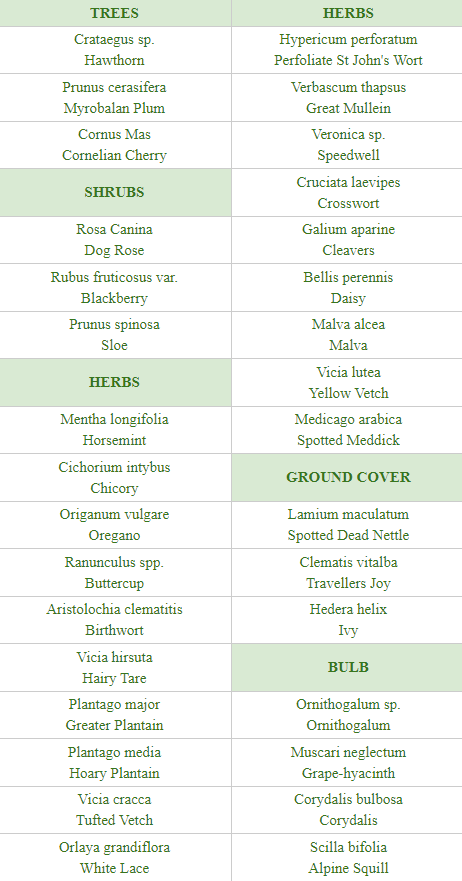

Here's a list of some of the existing plant species from this site.
In all of the perennial polycultures I design, my intention is to retain all of the existing species and to add more edible/productive plants along with fertility/support plants to assist them. More often than not many of the plants already growing on your site will be edible, medicinal, attractive to wildlife and fascinating organisms that are well worth getting to know.Â
Regenerative Landscape Design - Online Interactive Course
Want to learn how to design, build and manage regenerative landscapes? Join us on our Regenerative Landscape Design - Online Interactive Course. We look forward to providing you with the confidence, inspiration, and opportunity to design, build and manage regenerative landscapes, gardens, and farms that produce food and other resources for humans while enhancing biodiversity.
You can access the course material at anytime and join the live sessions and interactive forums that run from May - Oct every year. All members of the Bloom Room receive a 500 EUR discount. To take up this offer all you have to do is become an annual subscribers to our Substack and register here with the promo code BLOOM.
I look forward to you joining !
Soil Survey
Next we made a simple but effective soil survey to gauge the quality of the soil we are working with.
The soil test covers the below:
Ground cover: what is covering the surface of the soil?
Penetrometer: how easy is it to penetrate the soil?
Infiltration: how quickly the soil drains water?
Diversity of macro-life: quantity of visible soil organisms present on the surface
Root development: how the plant roots are distributed throughout the soil profile
Soil structure: how the solid parts of soil and the pore space between them are arranged
Aggregate stability: how stable is the structural arrangement?
Earthworms: how many?
Lab analysis: pH - the mineral content of your soil
Apart from Lab Analysis, all of the tests can be carried out with materials you will likely have around you. This soil test, when repeated each year, is a great way to track the progress of your soil overtime and to see how your methods are increasing or decreasing the health of your soil. The tests were developed by Northern Rivers and you can find full instructions and more info here.
Cadastral and Topography SurveyÂ
After lunch we were back on site for the cadastral survey, to mark the perimeter of the design area and to make a topography survey in order to gain an understanding of the shape of the ground i.e. where it slopes, high points and low points etc.

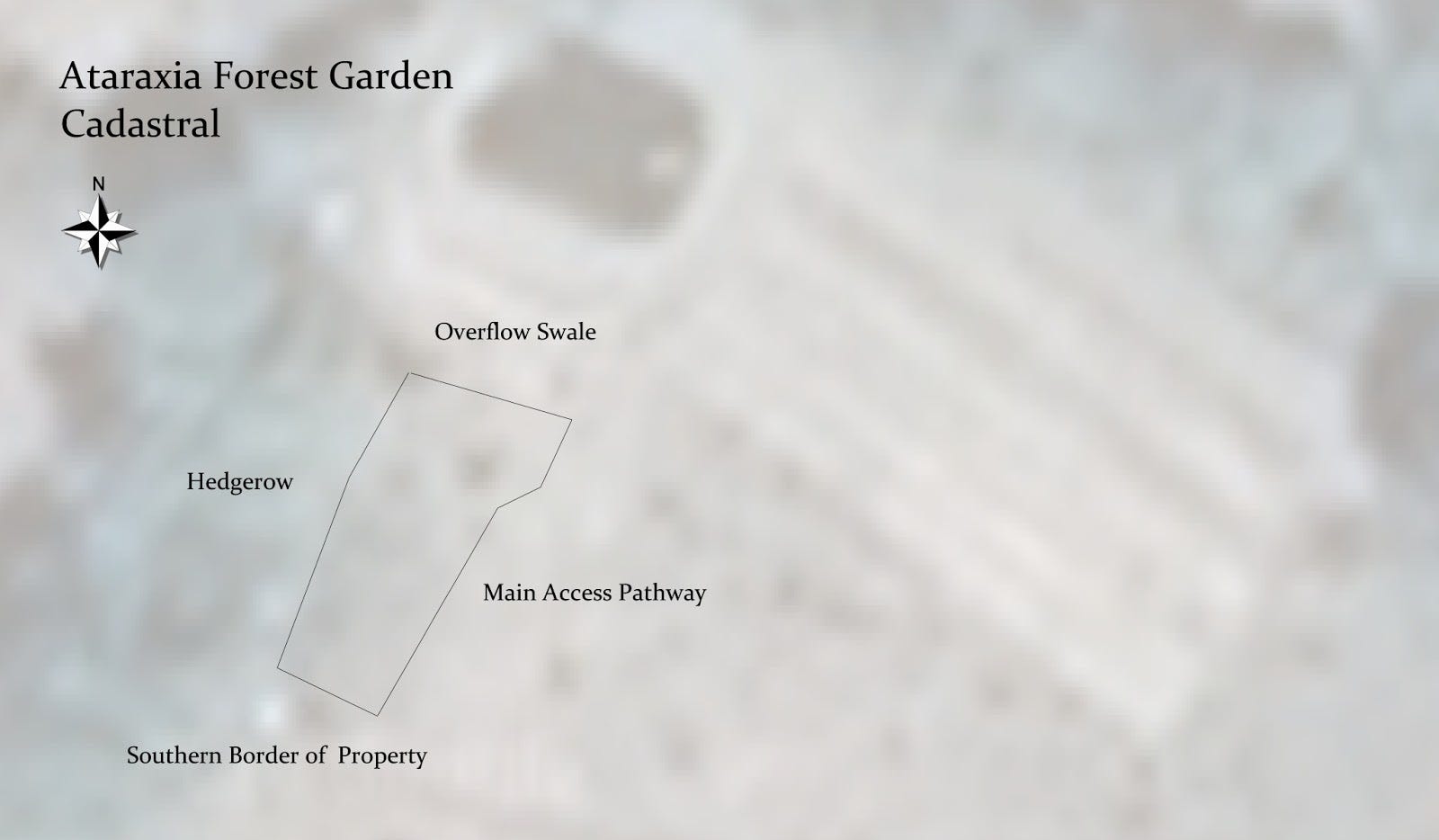

Cadastral - In this case the boundary for the garden was defined by existing features of the site, i.e. a hedgerow to the west, a main access path to the east, the property boundary to the south and an overflow swale for the main pond to the north. When marking the boundaries of the design we made sure to include a 1 m wide pathway around the entire area.
The corners of the plot were staked and we measured the distance between each corner with a measuring wheel taking note of each distance between each point in order to recreate the design on software later. You can also do this with a very accurate GPS (RTK based) and an orthophoto (an aerial photograph or image geometrically corrected such that the scale is uniform and corresponds to the GPS data).
A standard smart phone GPS and google earth do not provide anything of practical use at this scale. For a multi hectare plot they are adequate to gain a general impression.

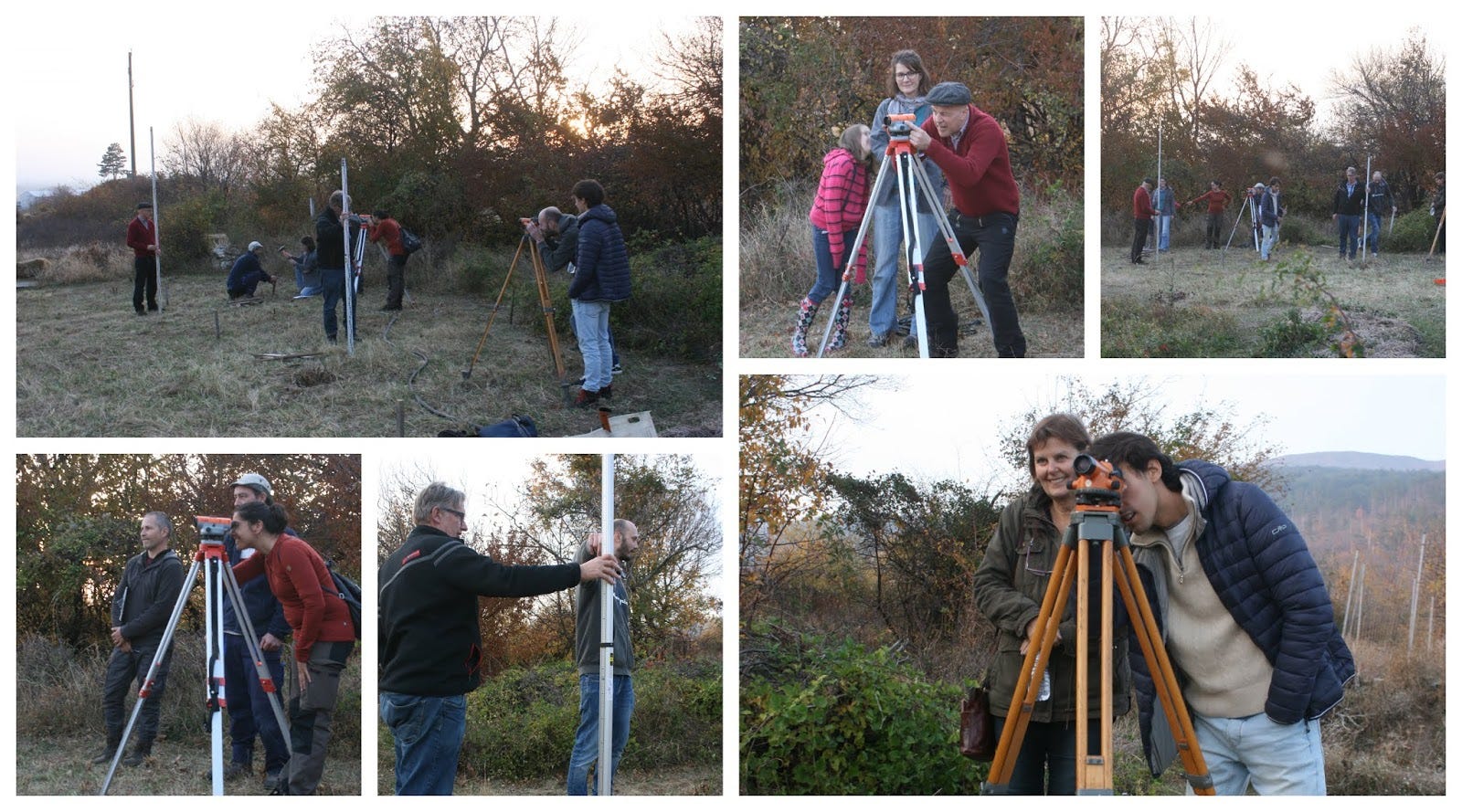

Topography Survey - Next we embarked upon the topography survey
Using a transit level we established the contour lines on the site and measured elevation distance from the highest to the lowest point of the site.Â

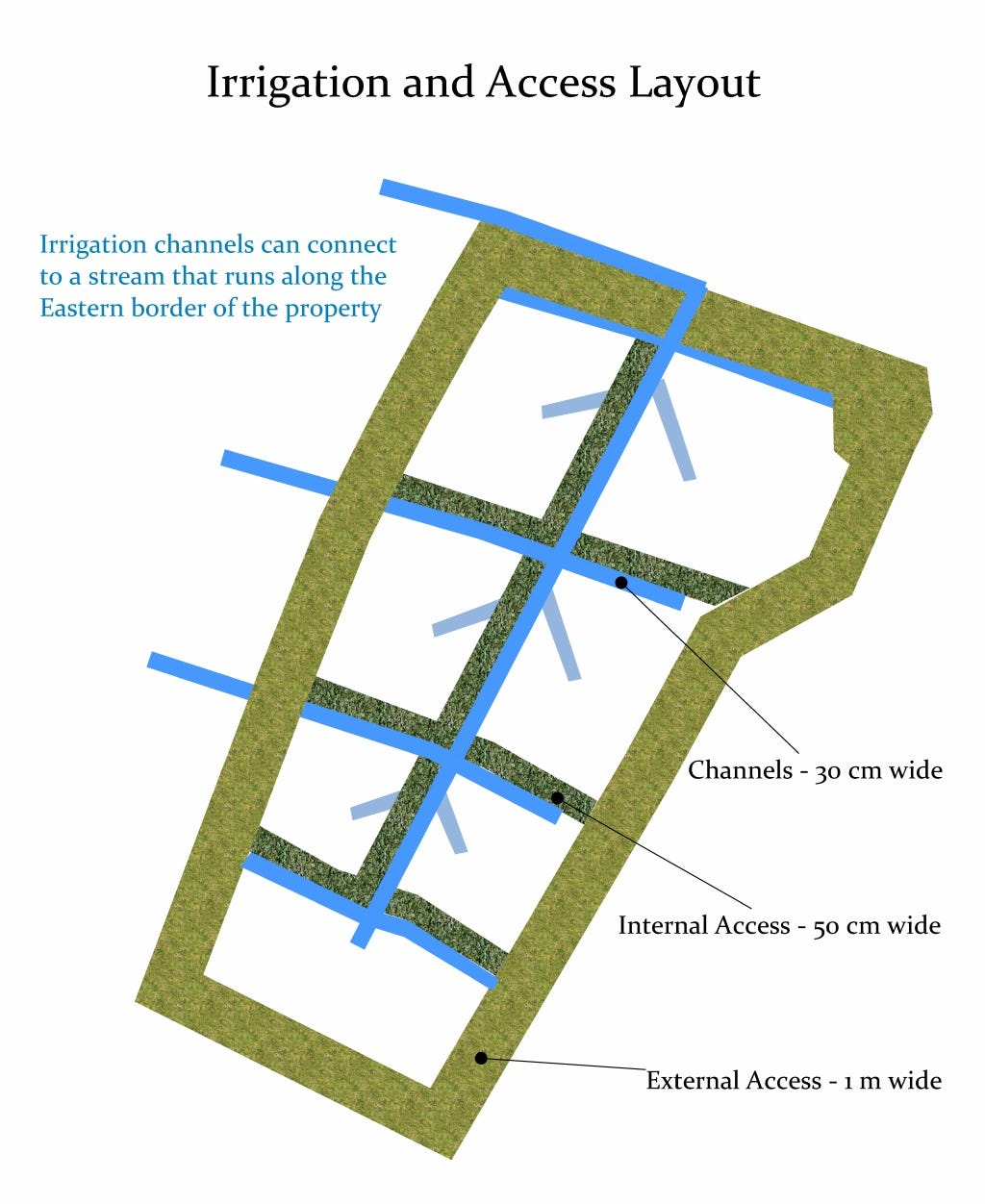

We found we have a mild slope from the North to the South and towards the East. Given that we have an irrigation channel to the west of the garden this meant that we could arrange irrigation channels and planting patterns to take advantage of gravity to irrigate all of the plants on the site.
The irrigation channel design we choose determined the layout of our access which in turn provided us with a number of subdivisions within the plot.
That's all for this post, I’ll be posting Part 2 in a few weeks, where we’ll look at plants for the design, the rationale behind our plant selection and placement , how we prepared the site for the work to begin, how we established the irrigation channels, pathways and planting zones for the plants, our planting out techniques and how to manage the garden.

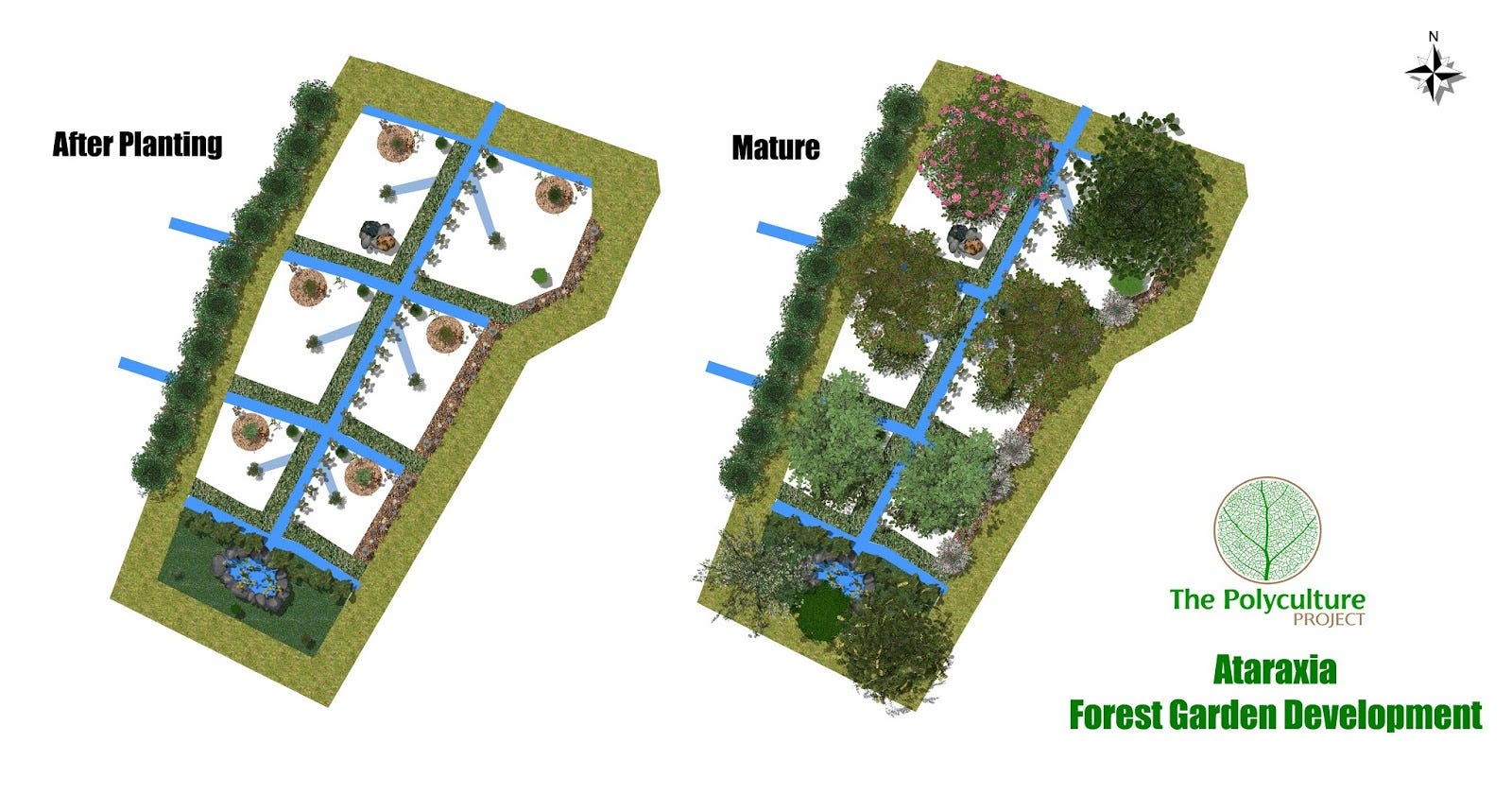

You can find more on Forest Garden Design in my previous post where we cover the design and build of the below garden - The Polyculture Project - Forest Garden Design - 650 m2 (7000 ft2) - How to Design and Build a Forest Garden
